BottleneckLSTM
BottleneckLSTM,源自CVPR2017的Google论文 Mobile Video Object Detection with Temporally-Aware Feature Maps

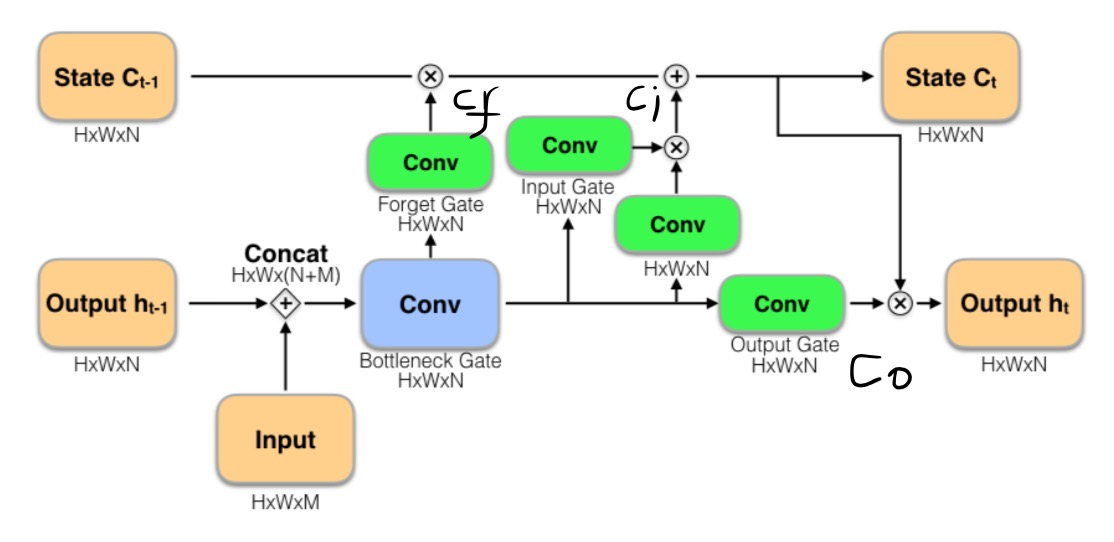

其相较于ConvLSTM,最大的改进是引入Bottleneck Gate,整合ht-1跟input,减少卷积次数及模型参数量,从而达到加速的目的。
Bottleneck
根据上图,我们看着1×1 --> 3×3这段通路,来做个计算,假设输入feature map的维度为256维,要求输出维度也是256维。有以下两种操作:
1. 256维的输入直接经过一个3×3×256的卷积层,输出一个256维的feature map,那么参数量为:256×3×3×256 = 589,824
2. 256维的输入先经过一个1×1×64的卷积层,再经过一个3×3×64的卷积层,最后经过一个3×3×256的卷积层,输出256维,参数量为:256×1×1×64 + 64×3×3×63 + 64×1×1×256 = 69,632。足足把第一种操作的参数量降低到九分之一!
1×1卷积核也被认为是影响深远的操作,往后大型的网络为了降低参数量都会应用上1×1卷积核。
实现源码:
class BottleneckLSTMCell(nn.Module): """ Creates a LSTM layer cell Arguments: input_channels : variable used to contain value of number of channels in input hidden_channels : variable used to contain value of number of channels in the hidden state of LSTM cell """ def __init__(self, input_channels, hidden_channels): super(BottleneckLSTMCell, self).__init__() assert hidden_channels % 2 == 0 self.input_channels = int(input_channels) self.hidden_channels = int(hidden_channels) self.num_features = 4 self.W = nn.Conv2d(in_channels=self.input_channels, out_channels=self.input_channels, kernel_size=3, groups=self.input_channels, stride=1, padding=1) self.Wy = nn.Conv2d(int(self.input_channels+self.hidden_channels), self.hidden_channels, kernel_size=1) self.Wi = nn.Conv2d(self.hidden_channels, self.hidden_channels, 3, 1, 1, groups=self.hidden_channels, bias=False) self.Wbi = nn.Conv2d(self.hidden_channels, self.hidden_channels, 1, 1, 0, bias=False) self.Wbf = nn.Conv2d(self.hidden_channels, self.hidden_channels, 1, 1, 0, bias=False) self.Wbc = nn.Conv2d(self.hidden_channels, self.hidden_channels, 1, 1, 0, bias=False) self.Wbo = nn.Conv2d(self.hidden_channels, self.hidden_channels, 1, 1, 0, bias=False) self.Wci = None self.Wcf = None self.Wco = None logging.info("Initializing weights of lstm") self._initialize_weights() def _initialize_weights(self): """ Returns: initialized weights of the model """ for m in self.modules(): if isinstance(m, nn.Conv2d): n = m.kernel_size[0] * m.kernel_size[1] * m.out_channels m.weight.data.normal_(0, math.sqrt(2. / n)) if m.bias is not None: m.bias.data.zero_() elif isinstance(m, nn.BatchNorm2d): m.weight.data.fill_(1) m.bias.data.zero_() def forward(self, x, h, c): #implemented as mentioned in paper here the only difference is Wbi, Wbf, Wbc & Wbo are commuted all together in paper """ Arguments: x : input tensor h : hidden state tensor c : cell state tensor Returns: output tensor after LSTM cell """ x = self.W(x) y = torch.cat((x, h),1) #concatenate input and hidden layers 主要改善点 i = self.Wy(y) #reduce to hidden layer size b = self.Wi(i) #depth wise 3*3 ci = torch.sigmoid(self.Wbi(b) + c * self.Wci) cf = torch.sigmoid(self.Wbf(b) + c * self.Wcf) cc = cf * c + ci * torch.relu(self.Wbc(b)) co = torch.sigmoid(self.Wbo(b) + cc * self.Wco) ch = co * torch.relu(cc) return ch, cc def init_hidden(self, batch_size, hidden, shape): """ Arguments: batch_size : an int variable having value of batch size while training hidden : an int variable having value of number of channels in hidden state shape : an array containing shape of the hidden and cell state Returns: cell state and hidden state """ if self.Wci is None: self.Wci = Variable(torch.zeros(1, hidden, shape[0], shape[1])).cuda() self.Wcf = Variable(torch.zeros(1, hidden, shape[0], shape[1])).cuda() self.Wco = Variable(torch.zeros(1, hidden, shape[0], shape[1])).cuda() else: assert shape[0] == self.Wci.size()[2], 'Input Height Mismatched!' assert shape[1] == self.Wci.size()[3], 'Input Width Mismatched!' return (Variable(torch.zeros(batch_size, hidden, shape[0], shape[1])).cuda(), Variable(torch.zeros(batch_size, hidden, shape[0], shape[1])).cuda() )
